FRAME 7FA.03 PARTS

PART DESCRIPTION PART NUMBER QTY PICTURES
Frame 7FA Stage 2 Vanes 103E3241 - MATL GTD-222 24 Moog Valve Model G771K625A
Frame 7FA Stage 3 Vanes 103E88P1H3 - MATL GTD-222 20 Moog Valve Model G771K625A
Frame 7FA Stage 2 Shroud Blocks 115E6176 - MATL HAYNES 120 48 Moog Valve Model G771K625A
7FA Frame Stage 3 Shroud Blocks 112E102891 - MATL SS-310 38 Moog Valve Model G771K625A

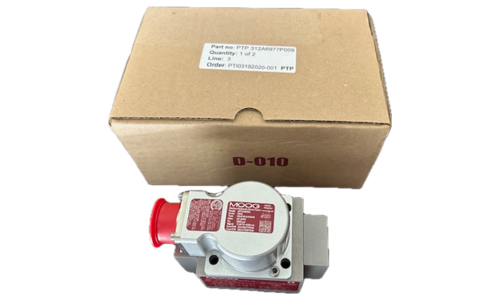

Moog Valve Model G771K625A 312A6077P038 & 381A7058P038 Moog Valve Model G771K625A

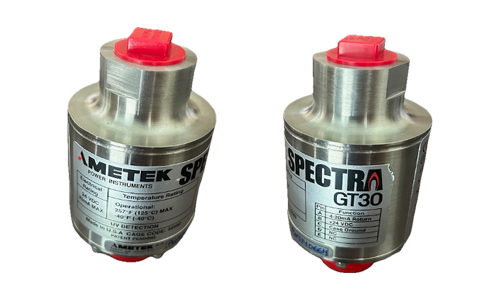

AMETEK Flame Detector Spectra GT30 326A1052P105 AMETEK Flame Detector Spectra GT30

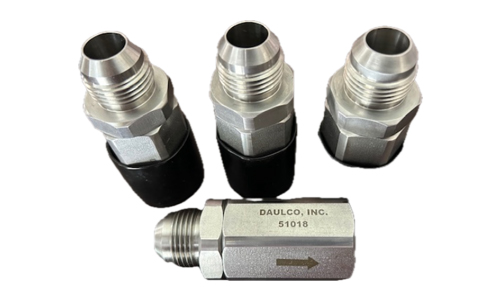

DAULCO Check Valve 51018 361A2943P001 & 361A2943P007 DAULCO Check Valve 51018
VANE STA STG 5 7FA+E/S 117E3552P001 86 VANE STA STG 5 7FA+E/S
VANE STA STG 5 LK 7FA+E/S 117E3552P002 1 VANE STA STG 5 LK 7FA+E/S
VANE STA STG 5 LK 7FA+E/S 117E3552P003 1 VANE STA STG 5 LK 7FA+E/S
BLD STA STG 6 7F450 109E5006P004 86 BLD STA STG 6 7F450
BLD STA STG 6 7F LCK BLD 109E5006P005 1 BLD STA STG 6 7F LCK BLD
BLD STG 6 7F LCK BLD 109E5006P006 1 BLD STG 6 7F LCK BLD
BLD STG 7 7F450 109E5007P004 86 BLD STG 7 7F450
BLD STA STG 7 7F LCK BLD 109E5007P005 1 BLD STA STG 7 7F LCK BLD
BLD STA STG 7 7F LCK BLD 109E5007P006 1 BLD STA STG 7 7F LCK BLD
BLD STG 8 7F450 109E5008P004 86 BLD STG 8 7F450
BLD STA STG 8 7F LCK BLD 109E5008P005 1 BLD STA STG 8 7F LCK BLD
BLD STA STG 8 7F LCK BLD 109E5008P006 1 BLD STA STG 8 7F LCK BLD
STA BLD STG 9-7FA+ 110E1609P010 108 STA BLD STG 9-7FA+
STA BLD STG 9-7FA+ 110E1609P011 1 STA BLD STG 9-7FA+
STA BLD STG 9-7FA+ 110E1609P012 1 STA BLD STG 9-7FA+
STA BLD STG 10-7FA+ 110E1609P0410 108 STA BLD STG 10-7FA+
STA BLD STG 10-7FA+ 110E1609P0411 1 STA BLD STG 10-7FA+
STA BLD STG 10-7FA+ 110E1609P0412 1 STA BLD STG 10-7FA+
STA BLD STG 11-7FA+ 110E1610P010 118 STA BLD STG 11-7FA+
STA BLD STG 11-7FA+ 110E1610P011 1 STA BLD STG 11-7FA+
STA BLD STG 11-7FA+ 110E1610P012 1 STA BLD STG 11-7FA+
STA BLD STG 12-7FA+ 110E1611P010 120 STA BLD STG 12-7FA+
STA BLD STG 12-7FA+ 110E1611P011 1 STA BLD STG 12-7FA+
STA BLD STG 12-7FA+ 110E1611P012 1 STA BLD STG 12-7FA+
STA BLD STG 13-7FA+ 110E1612P010 120 STA BLD STG 13-7FA+
STA BLD STG 13-7FA+ 110E1612P011 1 STA BLD STG 13-7FA+
STA BLD STG 13-7FA+ 110E1612P012 1 STA BLD STG 13-7FA+
STA BLD STG 14-7FA+ 110E1613P013 128 STA BLD STG 14-7FA+
STA BLD STG 14-7FA+ 110E1613P014 1 STA BLD STG 14-7FA+
STA BLD STG 14-7FA+ 110E1613P015 1 STA BLD STG 14-7FA+
STA BLD STG 14-7FA+ 110E1613P016 2 STA BLD STG 14-7FA+
STA BLD STG 15-7FA+ 110E1614P013 126 STA BLD STG 15-7FA+
STA BLD STG 15-7FA+ 110E1614P014 1 STA BLD STG 15-7FA+
STA BLD STG 15-7FA+ 110E1614P015 1 STA BLD STG 15-7FA+
STA BLD STG 15-7FA+ 110E1614P016 2 STA BLD STG 15-7FA+
STA BLD STG 16-7FA+ 110E1615P013 128 STA BLD STG 16-7FA+
STA BLD STG 16-7FA+ 110E1615P014 1 STA BLD STG 16-7FA+
STA BLD STG 16-7FA+ 110E1615P015 1 STA BLD STG 16-7FA+
STA BLD STG 16-7FA+ 110E1615P016 2 STA BLD STG 16-7FA+
STA BLD STG 17-7FA+E 116E2722P001 106 STA BLD STG 17-7FA+E
STA BLD STG 17-7FA+E LKR 116E2722P002 1 STA BLD STG 17-7FA+E LKR
STA BLD STG 17-7FA+E LKR 116E2722P003 1 STA BLD STG 17-7FA+E LKR
STA BLD STG 17-7FA+E LKR 116E2722P004 2 STA BLD STG 17-7FA+E LKR
STATOR VANE STG EGV1 116E2723P001 108 STATOR VANE STG EGV1
STATOR VANE STG EGV1 LKR 116E2723P002 1 STATOR VANE STG EGV1 LKR
STATOR VANE STG EGV1 LKR 116E2723P003 1 STATOR VANE STG EGV1 LKR
